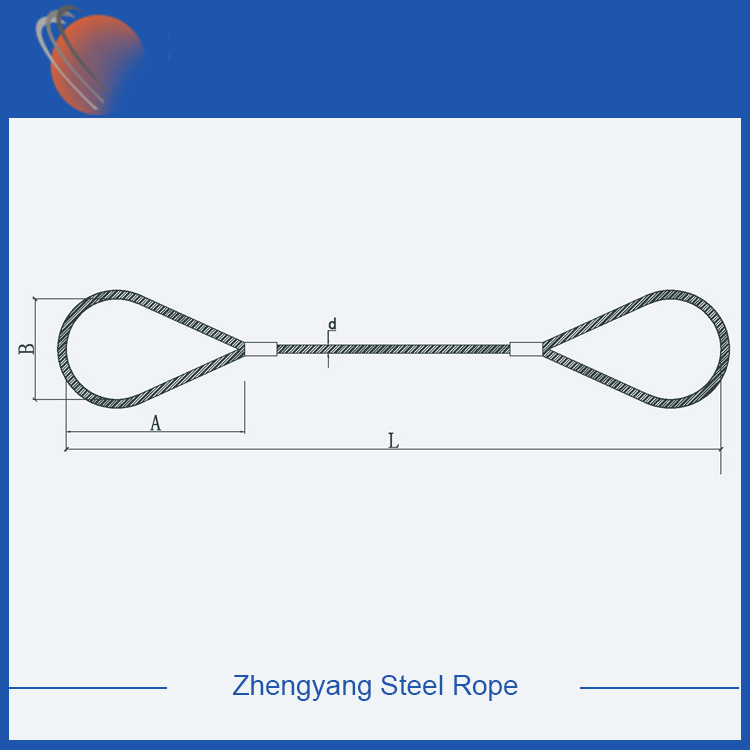

Sequentia est de pressis fundae filum funiculi affinis, spero te adiuvare melius intelligcre funem fundibuli pressum.
|
Funis dia. d (mm) |
Dia mollis loop. (mm) |
M.B.L (Ton) |
W.L.L(Ton) |
||
|
A |
B |
N=5 |
N=6 |
||
|
5 |
130 |
65 |
1.25 |
0.25 |
0.20 |
|
6 |
150 |
75 |
1.80 |
0.36 |
0.30 |
|
7 |
150 |
75 |
2.46 |
0.50 |
0.40 |
|
8 |
200 |
100 |
3.21 |
0.60 |
0.50 |
|
9 |
200 |
100 |
4.07 |
0.80 |
0.70 |
|
10 |
200 |
100 |
5.03 |
1.00 |
0.80 |
|
11 |
230 |
115 |
6.08 |
1.20 |
1.00 |
|
12 |
230 |
115 |
7.23 |
1.50 |
1.20 |
|
13 |
230 |
115 |
8.49 |
1.70 |
1.40 |
|
14 |
250 |
125 |
9.85 |
2.00 |
1.60 |
|
16 |
300 |
150 |
12.85 |
2.60 |
2.10 |
|
18 |
300 |
150 |
16.32 |
3.30 |
2.70 |
|
20 |
350 |
175 |
20.09 |
4.00 |
3.40 |
|
22 |
350 |
175 |
24.27 |
4.90 |
4.10 |
|
24 |
450 |
225 |
28.96 |
5.80 |
4.80 |
|
26 |
450 |
225 |
33.96 |
6.80 |
5.70 |
|
28 |
500 |
250 |
39.36 |
7.90 |
6.60 |
|
30 |
500 |
250 |
45.17 |
9.00 |
7.50 |
|
32 |
550 |
275 |
51.39 |
10.30 |
8.60 |
|
34 |
600 |
300 |
58.12 |
11.60 |
9.70 |
|
36 |
600 |
300 |
65.06 |
13.00 |
10.80 |
|
38 |
600 |
300 |
72.50 |
14.50 |
12.10 |
|
40 |
700 |
350 |
80.35 |
16.10 |
13.40 |
|
42 |
800 |
400 |
88.61 |
17.70 |
14.80 |
|
44 |
800 |
400 |
97.28 |
19.50 |
16.20 |
|
46 |
900 |
450 |
106.05 |
21.20 |
17.70 |
|
48 |
900 |
450 |
116.25 |
23.30 |
19.40 |
|
50 |
1000 |
500 |
125.43 |
25.10 |
21.00 |
|
52 |
1000 |
500 |
135.62 |
27.10 |
22.70 |
1. Structura funiculi ferri in mensa est 6×19+FC vel 6×37+FC, fortitudo distrahens: 1670N/MM²;
2. "A" et "B" quantitatem accommodari possunt, secundum exigentias mos, si non requiritur, mensam sequere;
3. "L" secundum emptoris requisita, n=5, n=6 sunt valores factoris salus, qui eligi possunt, et factor salutis communis est n=6 sine instructionibus.
